Portable Monitor

Product Description

The Asus 15.6' Zenscreen FHD Monitor MB166CR offers a portable, full HD display, ideal for professionals on the go. Featuring USB Type-C connectivity and IPS technology, this monitor provides vibrant visuals with a sleek design.

Key Features

• Portable Design: Sleek, lightweight, and easily portable for on-the-go use.

• Full HD Display: Provides sharp and clear visuals at 1920 x 1080 resolution.

• USB Type-C Connectivity: Single-cable connection for power and display support.

• IPS Technology: Wide-viewing angles with accurate color reproduction.

• Auto-Rotate Function: Automatically senses display orientation.

• Smart Stand: Flexible folding stand for multi-angle viewing.

Product Specifications

Model:

ZenScreen MB166CR

Display:

• Panel Size (inch): 15.6

• Aspect Ratio: 16:9

• Display Viewing Area (H x V): 344.16 x 193.59mm

• Display Surface: Non-Glare

• Backlight Type: LED

• Panel Type: IPS

• Viewing Angle (H/V): 178°/ 178°

• Pixel Pitch: 0.179mm

• Resolution: 1920x1080

• Brightness: 250cd/㎡

• Contrast Ratio: 800:1

• Display Colors: 262K

• Response Time: 5ms(GTG)

• Refresh Rate: 60Hz

• Flicker-Free: Yes

Features:

• Trace Free Technology: Yes

• SPLENDID Technology: Yes

• Color Temp. Selection: Yes

• GamePlus: Yes

• QuickFit: Yes

• DisplayWidget: Yes

• Low Blue Light: Yes

Audio:

• Speaker: No

I/O Ports:

• USB-C: Yes (DP Alt Mode)

Signal Frequency:

• Digital Signal Frequency: USB-C: 24-83KHZ (H) / 60Hz(V)

Power Consumption:

• Power Consumption: 5.24 W

• Power Saving Mode: <0.5W

• Power Off Mode: <0.3W

• Voltage: 100-240V, 50/60Hz

Mechanical Design:

• Height Adjustment: No

• 1/4" Tripod Socket: Yes

Dimensions:

• Without Stand (W x H x D): 36.01 x 22.56 x 1.18 cm

• Box Dimensions (W x H x D): 43.40 x 29.00 x 7.60 cm

Weight:

• Net Weight: 0.78 kg

• Gross Weight: 1.70 kg

Accessories:

• Included: 360° kickstand, Quick start guide, USB-C cable, Warranty Card, ZenScreen sleeve

Certificate:

• TÜV Flicker-free

• TÜV Low Blue Light

Ideal For

This monitor is ideal for travelers and professionals needing a portable display for work or entertainment.

In the Box

• ASUS ZenScreen MB166CR

• USB Type-C Cable

• User Guide

Product Description

Key Features

Product Specifications

Ideal For

In the Box

Product Description

Key Features

Product Specifications

Ideal For

In the Box

Product Description

The Asus 15.6" Zenscreen FHD Monitor MB16AHG is a portable monitor designed for on-the-go productivity and entertainment. Featuring a 15.6-inch Full HD IPS display with a 1920x1080 resolution, it offers vibrant colors and wide viewing angles. The monitor supports a 144Hz refresh rate and 3ms response time, making it ideal for smooth visuals. It includes USB-C and Mini HDMI ports for versatile connectivity, and its lightweight design ensures easy portability.

Key Features

• Portable Design: Lightweight and compact, perfect for on-the-go use with a net weight of only 0.92 kg.

• High-Quality Display: 15.6-inch Full HD IPS panel with 1920x1080 resolution and 100% sRGB color space for vibrant visuals.

• Fast Refresh Rate: 144Hz refresh rate and 3ms response time for smooth and responsive gaming and video playback.

• Adaptive-Sync Technology: Features AMD FreeSync Premium for tear-free and stutter-free gaming experiences.

• Multiple Connectivity Options: Equipped with USB-C and Mini HDMI ports for versatile connectivity with various devices.

• Eye Care Features: TÜV certified flicker-free and low blue light technology to reduce eye strain during extended use.

Product Specifications

Model:

ASUS ZenScreen MB16AHG

Display:

• Panel Size (inch): 15.6

• Aspect Ratio: 16:9

• Display Viewing Area (H x V): 344.16 x 193.59 mm

• Display Surface: Non-Glare

• Backlight Type: LED

• Panel Type: IPS

• Viewing Angle (H/V): 178°/178°

• Pixel Pitch: 0.179mm

• Resolution: 1920x1080

• Color Space: 100% sRGB

• Brightness: 300cd/㎡

• Contrast Ratio: 1200:1

• Display Colors: 16.7M

• Response Time: 3ms (GTG)

• Refresh Rate: 144Hz

• Flicker-Free: Yes

Features:

• Trace Free Technology: Yes

• SPLENDID Technology: Yes

• Color Temp. Selection: Yes (4 modes)

• GamePlus: Yes

• QuickFit: Yes (Photo/Alignment Grid)

• HDCP: Yes, 1.4

• VRR Technology: Yes (Adaptive-Sync)

• DisplayWidget: Yes, DisplayWidget Lite

• Low Blue Light: Yes

I/O Ports:

• USB-C: 2 (DP Alt Mode)

• Mini HDMI: 1

• Earphone Jack: Yes

Signal Frequency:

• HDMI Frequency: 30-180 KHz (H) / 60-144Hz (V)

• USB-C Frequency: 180 KHz (H) / 60-144Hz (V)

Power Consumption:

• Power Consumption: ≤17W

• Power Saving Mode: <0.5W

• Power Off Mode: <0.3W

• Voltage: 100-240V, 50/60Hz

Mechanical Design:

• Tilt: Yes (+15° ~ +35°)

• Height Adjustment: No

• 1/4" Tripod Socket: Yes

Dimensions:

• Without Stand (W x H x D): 35.99 x 22.68 x 1.20 cm (14.17" x 8.93" x 0.47")

• Box Dimensions (W x H x D): 48.50 x 30.50 x 7.60 cm (19.09" x 12.01" x 2.99")

Weight:

• Net Weight Without Stand: 0.92 kg (2.03 lbs)

• Gross Weight: 2.78 kg (6.13 lbs)

Accessories:

• Included: Mini HDMI to HDMI cable, Power adapter, Quick start guide, USB-C cable, USB-C to A cable, Warranty Card, ZenScreen sleeve

Certificate:

• TÜV Flicker-free

• TÜV Low Blue Light

• AMD FreeSync Premium

Ideal For

This product is ideal for professionals and gamers who require a portable and high-quality display for their work or entertainment needs. It is suitable for those who need a secondary monitor for enhanced productivity or immersive gaming experiences.

In the Box

• Mini HDMI to HDMI cable

• Power adapter

• Quick start guide

• USB-C cable

• USB-C to A cable

• Warranty Card

• ZenScreen sleeve

Product Description

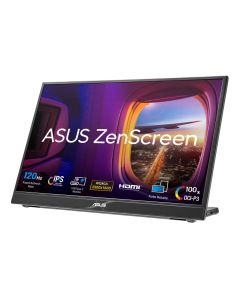

The Asus ZenScreen MB16QHG is a 16-inch portable monitor designed for on-the-go productivity and entertainment. Featuring a WQXGA resolution of 2560x1600, this monitor offers stunning visuals with 100% DCI-P3 color space and a 120Hz refresh rate for smooth motion. Its IPS panel ensures ultra-wide viewing angles, while the USB Type-C and HDMI connectivity provide versatile compatibility. With features like Auto Rotate, Flicker-free technology, and Low Blue Light, it is ideal for professionals and gamers alike.

Key Features

• High Resolution: Enjoy stunning visuals with a WQXGA 2560x1600 resolution for detailed and vibrant images.

• Rapid Refresh Rate: Experience smooth and fluid motion with a 120Hz refresh rate, ideal for gaming and fast-paced content.

• Wide Viewing Angles: IPS panel technology provides ultra-wide 178 degree viewing angles for consistent color and clarity from any perspective.

• USB Type-C Connectivity: Simplify connections with dual USB-C ports supporting DP Alt Mode for versatile connectivity options.

• Color Accuracy: 100% DCI-P3 color space ensures accurate and vivid color reproduction for professional-grade visuals.

• Portable Design: Lightweight and compact, this monitor is easy to carry, making it perfect for on-the-go use.

Product Specifications

Model:

ASUS ZenScreen MB16QHG

Display:

• Panel Size (inch): 16

• Aspect Ratio: 16:10

• Display Viewing Area (H x V): 344.68 x 215.42 mm

• Display Surface: Non-Glare

• Backlight Type: LED

• Panel Type: IPS

• Viewing Angle (H/V): 178 degree/178 degree

• Pixel Pitch: 0.135mm

• Resolution: 2560x1600

• Color Space: 100% DCI-P3

• Brightness: 500cd/㎡

• Contrast Ratio: 1200:1

• Display Colors: 16.7M

• Response Time: 5ms (GTG)

• Refresh Rate: 120Hz

• HDR Support: HDR10

• Flicker-Free: Yes

Features:

• Trace Free Technology: Yes

• SPLENDID Technology: Yes

• Color Temp. Selection: Yes (4 modes)

• GamePlus: Yes

• QuickFit: Yes (Photo/Alignment Grid)

• HDCP: Yes, 2.2

• DisplayWidget: Yes, DisplayWidget Center

• Low Blue Light: Yes

I/O Ports:

• USB-C: 2 (DP Alt Mode)

• HDMI: 1 (v2.0)

• Earphone Jack: Yes

Power Consumption:

• Power Consumption: 13W

• Power Saving Mode: 0.5W

• Power Off Mode: 0.3W

• Voltage: 100-240V, 50/60Hz

Mechanical Design:

• 1/4" Tripod Socket: Yes

Dimensions:

• With Stand (W x H x D): 35.97 x 24.71 x 0.70 cm

• Box Dimensions (W x H x D): 43.40 x 11.90 x 32.30 cm

Weight:

• Net Weight: 1.2 kg

• Gross Weight: 3.50 kg

Accessories:

• Included: HDMI cable, Power adapter, Quick start guide, USB-C cable, Warranty Card, ZenScreen sleeve

Certificate:

• VESA DisplayHDR 400

Ideal For

Ideal for professionals and gamers who require a portable, high-resolution display with advanced features like rapid refresh rate and wide viewing angles.

In the Box

• HDMI cable

• Power adapter

• Quick start guide

• USB-C cable

• Warranty Card

• ZenScreen sleeve

Product Description

Key Features

Product Specifications

Ideal For

In the Box

Product Description

Key Features

Product Specifications

Ideal For

In the Box

Product Description

The Asus 15.6" Zenscreen FHD Monitor MB166B is a portable and versatile display solution designed for professionals on the go. Featuring a 15.6-inch Full HD IPS panel, it offers a 16:9 aspect ratio and a wide 178° viewing angle for clear and vibrant visuals. The monitor is equipped with a USB 3.2 port for both display and power, making it easy to connect and use with compatible devices. Its non-glare surface and lightweight design, weighing just 0.78 kg, make it ideal for travel. Additionally, the monitor includes an Ergo Kickstand and a tripod socket for flexible positioning, enhancing user convenience.

Key Features

• Portable Design: The ASUS ZenScreen MB166B is lightweight and compact, making it easy to carry and ideal for on-the-go use.

• Full HD Display: Enjoy a 15.6-inch Full HD display with a resolution of 1920x1080, providing clear and vibrant visuals.

• IPS Panel: The IPS panel offers wide viewing angles of 178°/178°, ensuring consistent color and clarity from any angle.

• USB 3.2 Connectivity: Features a USB 3.2 port for both display and power, simplifying connectivity with a single cable.

• Ergo Kickstand: Includes an ergonomic kickstand for easy setup and comfortable viewing angles.

• Eye Care Technology: ASUS Eye Care technology reduces eye strain with TÜV Rheinland-certified flicker-free and low blue light features.

Product Specifications

Model:

ZenScreen MB166B

Display:

• Panel Size (inch): 15.6

• Aspect Ratio: 16:9

• Display Viewing Area (H x V): 344.16 x 193.59 mm

• Display Surface: Non-Glare

• Backlight Type: LED

• Panel Type: IPS

• Viewing Angle (H/V): 178°/178°

• Pixel Pitch: 0.179 mm

• Resolution: 1920x1080

• Brightness: 250 cd/㎡

• Contrast Ratio: 1000:1

• Display Colors: 262K

• Response Time: 25 ms

• Refresh Rate: 60 Hz

I/O Ports:

• USB 3.2 (Signal): x 1

Signal Frequency:

• Digital Signal Frequency: USB: 60 Hz

Power Consumption:

• Power Consumption: 5 W

• Power Saving Mode: <0.5 W

• Power Off Mode: <0.3 W

• Voltage: DC 5V, 3A

Mechanical Design:

• 1/4" Tripod Socket: Yes

Dimensions:

• Without Stand (W x H x D): 360.1 x 225.6 x 11.8 mm

• Box Dimensions (W x H x D): 434 x 290 x 76 mm

Weight:

• Net Weight: 0.78 kg

• Gross Weight: 1.65 kg

Accessories:

• Included: Quick start guide, USB 3.2 cable, Warranty Card, ZenScreen sleeve

Ideal For

Individuals seeking a portable and high-quality display solution, suitable for professionals and students who require an additional screen for work or study.

In the Box

• Quick start guide

• USB 3.2 cable

• Warranty Card

• ZenScreen sleeve

Product Description

The Asus 14" Zenscreen FHD Monitor MB14AC is a portable and versatile display solution designed for professionals and gamers alike. Featuring a 14-inch Full HD IPS panel, it offers a 16:9 aspect ratio and a wide 178° viewing angle for immersive visuals. With its non-glare surface and LED backlight, the monitor ensures comfortable viewing in various lighting conditions. It supports USB-C connectivity, making it compatible with laptops, gaming consoles, and cameras. The monitor is equipped with Asus Eye Care technology, including TÜV Rheinland-certified flicker-free and low blue light features, to reduce eye strain during extended use.

Key Features

• Portable Design: Lightweight and compact, perfect for on-the-go use with laptops and gaming consoles.

• Full HD Display: 14-inch IPS panel with 1920x1080 resolution for clear and vibrant visuals.

• Versatile Connectivity: Supports USB-A and USB-C for easy connection to various devices.

• Eye Care Technology: TÜV Rheinland certified for flicker-free and low blue light features, reducing eye strain.

• QuickFit and SPLENDID Technology: Enhances viewing experience with customizable display settings.

• Energy Efficient: Low power consumption of 4.8W, with power-saving and power-off modes.

Product Specifications

Model:

ZenScreen MB14AC

Display:

• Panel Size (inch): 14

• Aspect Ratio: 16:9

• Display Viewing Area (H x V): 309.312 x 173.99 mm

• Display Surface: Non-Glare

• Backlight Type: LED

• Panel Type: IPS

• Viewing Angle (H/V): 178°/ 178°

• Pixel Pitch: 0.160mm

• Resolution: 1920x1080

• Brightness: 250cd/㎡

• Contrast Ratio: 700:1

• Display Colors: 16.7M

• Response Time: 5ms(GTG)

• Refresh Rate: 60Hz

• Flicker-Free: Yes

Features:

• Trace Free Technology: Yes

• Color Temp. Selection: Yes

• Low Blue Light: Yes

Audio:

• Speaker: No

I/O Ports:

• USB-C: Yes (DP Alt Mode & USB 3.2)

Power Consumption:

• Power Consumption: 4.8 W

• Power Saving Mode: <0.5W

• Power Off Mode: <0.5W

• Voltage: DC: 5V, 3A

Mechanical Design:

• Height Adjustment: No

• 1/4" Tripod Socket: Yes

Dimensions:

• With Stand (W x H x D): 32.49 x 20.80 x 0.90 cm

• Box Dimensions (W x H x D): 39.20 x 7.70 x 25.70 cm

Weight:

• Net Weight: 0.59 kg

• Gross Weight: 1.3 kg

Accessories:

• Included: ASUS Smart Case, Quick start guide, USB-C cable, Warranty Card

Certificate:

• TÜV Flicker-free

• TÜV Low Blue Light

Ideal For

• Individuals seeking a portable monitor for laptops, gaming consoles, and cameras.

• Users who prioritize eye care with TÜV Rheinland certification.

In the Box

• ASUS Smart Case

• Quick start guide

• USB-C cable

• Warranty Card

• Certificate

Product Description

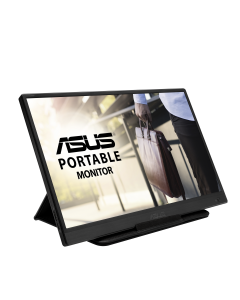

The Asus 15.6' Zenscreen HD Monitor MB165B is a portable and lightweight monitor designed for on-the-go productivity. Featuring a 15.6-inch display with a 16:9 aspect ratio, it offers a resolution of 1366x768 (WXGA) and a non-glare surface for comfortable viewing. With a slim profile and a weight of just 0.78 kg, it is easy to carry and set up. The monitor includes a USB 3.2 port for connectivity and supports DisplayWidget for enhanced functionality on Windows OS. Ideal for business professionals and travelers, it provides a convenient second screen solution.

Key Features

• Portable Design: Lightweight and compact, perfect for on-the-go use.

• 15.6-inch Display: Offers a 1366x768 resolution for clear visuals.

• Non-Glare Surface: Reduces reflections for comfortable viewing.

• USB 3.2 Connectivity: Ensures fast and reliable data transfer.

• Energy Efficient: Consumes only 4.88W of power.

• Tripod Socket: Allows for flexible mounting options.

Product Specifications

Model:

ZenScreen MB165B

Display:

• Panel Size (inch): 15.6

• Aspect Ratio: 16:9

• Display Viewing Area (H x V): 344.23 x 193.54 mm

• Display Surface: Non-Glare

• Backlight Type: LED

• Panel Type: TN

• Viewing Angle (H/V): 90°/65°

• Pixel Pitch: 0.252 mm

• Resolution: 1366x768 (WXGA)

• Brightness: 220 cd/㎡

• Contrast Ratio: 500:1

• Display Colors: 260K

• Response Time: 10 ms (Tr+Tf)

• Refresh Rate: 60 Hz

• Flicker-Free: No

Features:

• HDCP: Yes

• DisplayWidget: Yes

Audio:

• Speaker: No

I/O Ports:

• USB 3.2 (Signal): x 1

Power Consumption:

• Power Consumption: 4.88 W

• Power Saving Mode: <0.5 W

• Power Off Mode: <0.3 W

• Voltage: DC: 5V, 3A

Mechanical Design:

• Height Adjustment: No

• 1/4" Tripod Socket: Yes

Dimensions:

• Without Stand (W x H x D): 36.01 x 22.50 x 1.18 cm

• Box Dimensions (W x H x D): 43.40 x 29.00 x 7.60 cm

Weight:

• Net Weight: 0.78 kg

• Gross Weight: 1.65 kg

Accessories:

• Included: Quick start guide, USB 3.2 cable, Warranty Card, ZenScreen sleeve

Ideal For

This product is ideal for professionals and students who need a portable monitor for enhanced productivity and convenience. It is suitable for those who require an additional screen for multitasking or presentations.

In the Box

• Quick start guide

• USB 3.2 cable

• Warranty Card

• ZenScreen sleeve

Product Description

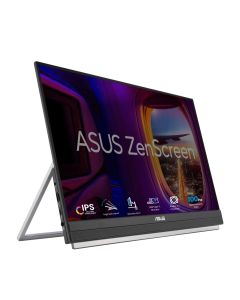

Featuring a 21.5-inch IPS panel with a Full HD resolution of 1920x1080, it offers ultra-wide viewing angles and a non-glare surface for comfortable viewing. With a rapid refresh rate of 100Hz and adaptive-sync technology, it ensures smooth visuals. The monitor includes USB-C and HDMI connectivity, built-in 2.1 channel audio, and ergonomic design features like tilt, swivel, and height adjustment, making it a perfect choice for modern users.

Key Features

• Ultra-wide Viewing Angles: Enjoy consistent, accurate colors from any angle with 178 degree viewing angles.

• Ergokickstand: Provides flexible positioning for comfortable viewing and productivity.

• USB Type-C Connectivity: Simplifies connections with a single cable for video, audio, and power.

• 100Hz Rapid Refresh Rate: Ensures smooth visuals for gaming and multimedia experiences.

• 2.1 Channel Audio: Delivers immersive sound with built-in speakers and woofer.

• Adaptive-Sync Technology: Reduces screen tearing for a seamless gaming experience.

Product Specifications

Model:

ZenScreen MB229CF

Display:

• Panel Size (inch): 21.5

• Aspect Ratio: 16:9

• Display Viewing Area (H x V): 476.06(H) x 267.79(V)

• Display Surface: Non-Glare

• Backlight Type: LED

• Panel Type: IPS

• Viewing Angle (H/V): 178 degree/ 178 degree

• Pixel Pitch: 0.248mm

• Resolution: 1920x1080

• Brightness: 250cd/㎡

• Contrast Ratio: 1000:1

• Display Colors: 16.7M

• Response Time: 5ms(GTG)

• Refresh Rate: 100Hz

• Flicker-Free: Yes

Features:

• Trace Free Technology: Yes

• Color Temp. Selection: Yes

• GamePlus: Yes

• HDCP: Yes

• VRR Technology: Yes

• GameFast Input Technology: Yes

• Shadow Boost: Yes

• Low Blue Light: Yes

Audio:

• Speaker: Yes (2.1 channel)

I/O Ports:

• DisplayPort: USB-C x 1 (DP Alt Mode)

• HDMI: HDMI(v1.4) x 1

• Earphone Jack: Yes

Signal Frequency:

• DisplayPort Frequency: TYPE-C: 30~111KHz(H)/ 48~100 Hz(V)

• HDMI Frequency: HDMI: 30~111KHz(H)/ 48~100Hz(V)

Power Consumption:

• Power Consumption: 13W

• Power Saving Mode: 0.5W

• Voltage: 100-240V, 50/60Hz

Mechanical Design:

• Tilt: Yes (+20 degree ~ -5 degree)

• Swivel: Yes (+90 degree ~ -90 degree)

• Pivot: Yes (+90 degree ~ -90 degree)

• Height Adjustment: 0~180mm

• VESA Wall Mounting: 100x100mm

Dimensions:

• With Stand (W x H x D): 48.7 x 72.2 x 30.1 cm

• Without Stand (W x H x D): 48.7 x 31.8 x 2.2 cm

• Box Dimensions (W x H x D): 54.7 x 39.8 x 12.9 cm

Weight:

• Net Weight: 4.0 kg

• Weight Without Stand: 2.2 kg

• Gross Weight: 6.0 kg

Accessories:

• Included: C-Clamp Arm, HDMI cable, L-shaped Screwdriver, Partition hook, Power adapter, Power cord, Quick start guide, USB-C cable, Warranty Card

Certificate:

• Energy Star

• TÜV Flicker-free

• TÜV Low Blue Light

• FSC MIX

Ideal For

Individuals seeking a portable and versatile monitor with advanced features for enhanced viewing experiences.

In the Box

• C-Clamp Arm

• HDMI cable

• L-shaped Screwdriver

• Partition hook

• Power adapter

• Power cord

• Quick start guide

• USB-C cable

• Warranty Card

Product Description

Key Features

Product Specifications

Ideal For

In the Box

Product Description

Key Features

Product Specifications

Ideal For

In the Box
